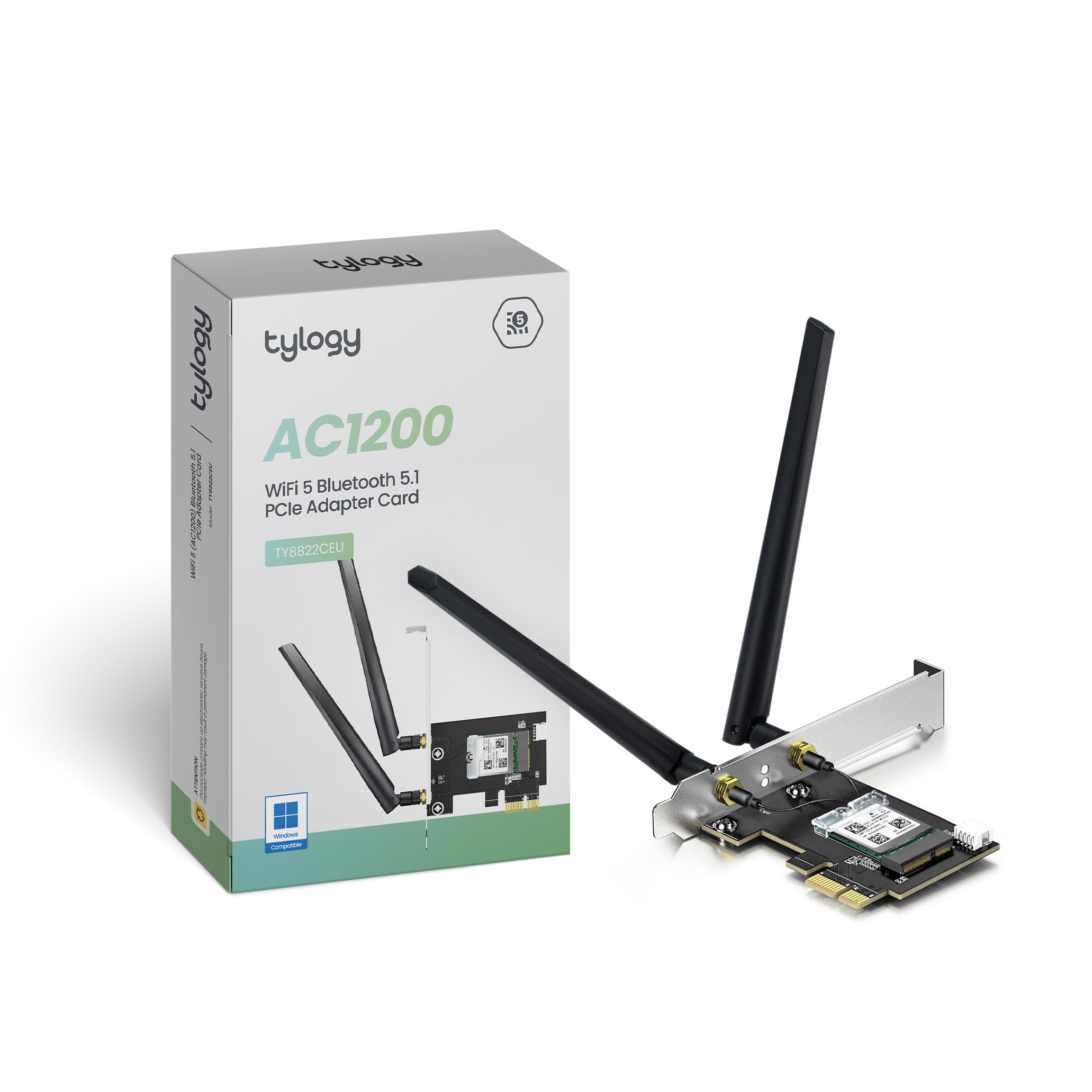

Tylogy® WiFi 5 & Bluetooth 5.1 AC1200Mbps PCIe x1 Dual-Band Wireless Network Adapter Card with High-Gain External Antennas

SKU: TY8822CEU
  • Built-in Realtek® RTL8822CE WiFi 5 module
  • Dual-band support: 2.4GHz and 5GHz native frequencies
  • Up to 1200Mbps of high-speed wireless bandwidth
  • Featuring a set of two 6dBi high gain antennas
  • Supports Bluetooth 5.1 devices
  • Complies with IEEE 802.11 a/b/g/n/ac standards
  • Compatible with most WiFi-ready NOS (Network Operating Systems) including Windows® 10/11 and Linux (kernel 5.1+ recommended)
  • Includes both full-height and low-profile brackets for installation in standard workstation and PC cases as well as slim cases
Product Warranty

For more details regarding Tylogy products warranty, please check out our Warranty Policy page.

Product Safety

Starting December 13th, 2024, any product sold on the EU market must comply with the GPSR (Regulation EU 2023/988). As part of that directive, economic operators placing products on the EU market must disclose the manufacturer's name and address and nominate a local EU representative entrusted with tasks relating to the safety of the products.

Product Manufacturer:

HCX Technologies Limited
Unit B, 11/F, 23 Thomson Road
Wan Chai District
Hong Kong SAR China

www.hcx.com.hk

EU Representative:

Firx SAS (dba. HCX Europe)
32 boulevard de Strasbourg
CS 30108, 75468 Paris CEDEX 10
France

www.firx.eu

Key Specifications

WiFi Technology

WiFi 5

WiFi Specification

AC1200

Network Bandwidth

1001Mbps to 2500Mbps

Technical Details

Technical Specifications
Product TY8822CEU
Product Revision rev 1.0
Bus Type PCI Express rev 3.0
Bus Width x1 Lane PCI Express (8.0GT/s), operable in x1, x4, x8, x16 slots
Interfaces PCIe x1, 9-pins USB 2.0 M/B header (for Bluetooth only)
Wireless Frequencies 2.4GHz: 300Mbps / 5GHz: 867Mbps, BT 5.1: 2402MHz~2483MHz
Total Bandwidth Capacity 1167Mbps (AC1200)
Chipset Realtek® RTL8822CE
Antenna Gain Dual 6dBi External Antennas
Power Requirements 10W
Dimensions 77 x 68 x 22 mm (without antenna)
Weight 0.045 kg
Compatibility
Operating System Support
  • Windows® 10/11
  • Linux (kernel 5.1+ recommended)
IEEE Support 802.11 a/b/g/n/ac
Additional Features
  • MU-MIMO
  • OFDMA
Additional Information
Regulatory Compliance FCC Part 15 Class B, CE, RoHS
Operating Environment Temperature: 0 ℃ to 55 ℃
Relative Humidity: 10%-90% (non-condensing)
Storage Environment Temperature: -10℃ to 70℃
Relative Humidity: 10%-90% (non-condensing)
MTBF >50,000h @ 25°C
Packaging
Contents
  • 1 x TY8822CEU WiFi 5 & Bluetooth 5.1 PCIe x1 Wireless Network Adapter Card (with pre-installed full height bracket)
  • 2 x 1T1R 6dBi high gain RP-SMA antenna
  • 1 x Low Profile Bracket
  • 1 x Quick Installation Guide
Dimensions 225 x 145 x 35 mm
Weight 0.18 kg
