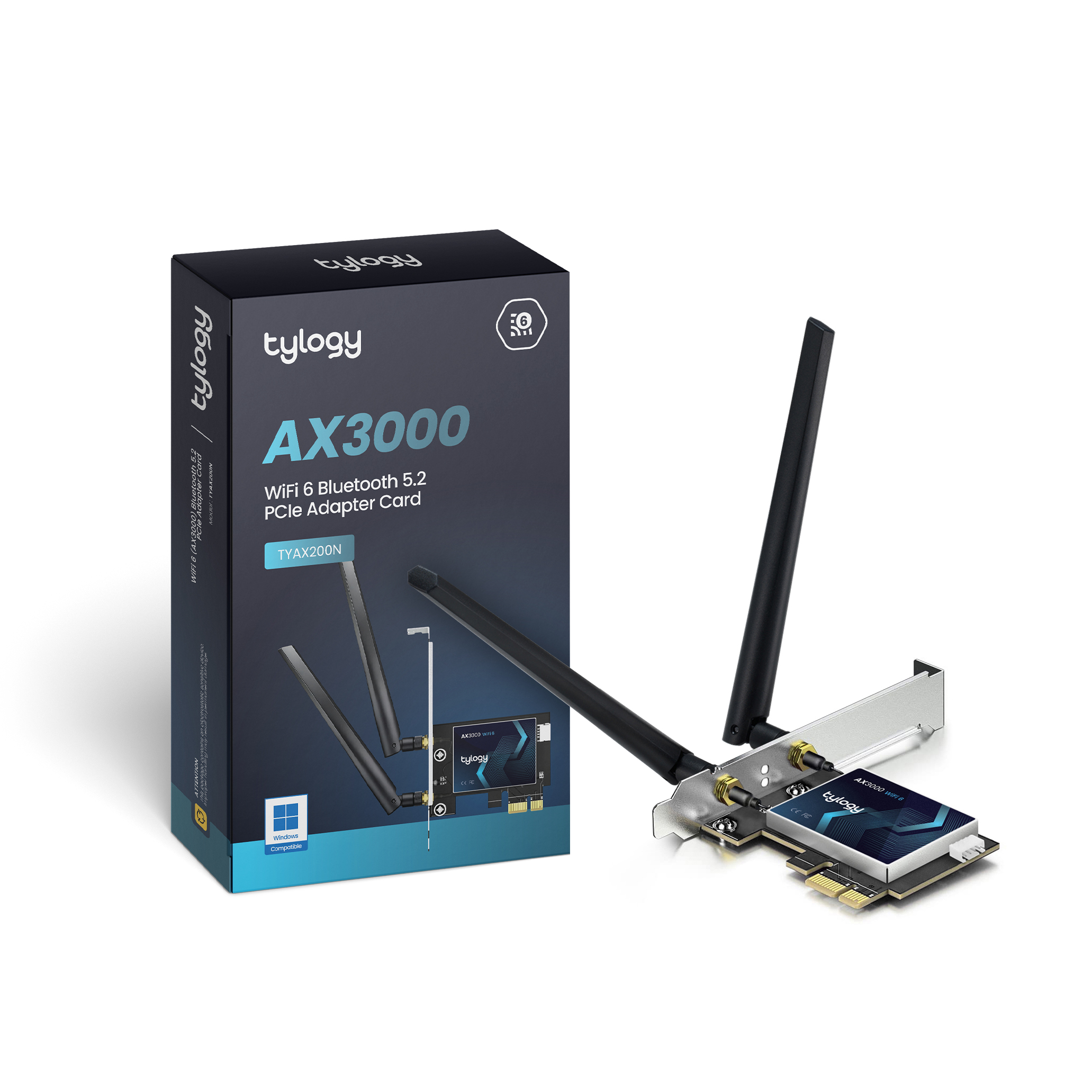

Tylogy® WiFi 6 & Bluetooth 5.2 AX3000Mbps PCIe x1 Dual-Band Wireless Network Adapter Card with High-Gain External Antennas
- Built-in Intel® AX200 WiFi 6 module
- Dual-band support: 2.4GHz and 5GHz native frequencies
- Up to 3000Mbps of ultra high-speed wireless bandwidth
- Featuring a set of two 6dBi high gain antennas
- Supports Bluetooth 5.2 devices
- Complies with IEEE 802.11 a/b/g/n/ac/ax standards
- Compatible with most WiFi-ready NOS (Network Operating Systems) including Windows® 10/11 (64bits) and Linux (kernel 5.1+ recommended)
- Includes both full-height and low-profile brackets for installation in standard workstation and PC cases as well as slim cases
Product Warranty
For more details regarding Tylogy products warranty, please check out our Warranty Policy page.
Product Safety
Starting December 13th, 2024, any product sold on the EU market must comply with the GPSR (Regulation EU 2023/988). As part of that directive, economic operators placing products on the EU market must disclose the manufacturer's name and address and nominate a local EU representative entrusted with tasks relating to the safety of the products.
Product Manufacturer:
HCX Technologies Limited
Unit B, 11/F, 23 Thomson Road
Wan Chai District
Hong Kong SAR China
EU Representative:
Firx SAS (dba. HCX Europe)
32 boulevard de Strasbourg
CS 30108, 75468 Paris CEDEX 10
France
Key Specifications
| WiFi Technology |
WiFi 6/6E |
|---|---|
| WiFi Specification |
AX3000 |
| Network Bandwidth |
2501Mbps to 5000Mbps |
Technical Details
| Technical Specifications | ||
|---|---|---|
| Product | TYAX200N | |
| Product Revision | rev 1.0 | |
| Bus Type | PCI Express rev 3.0 | |
| Bus Width | x1 Lane PCI Express (8.0GT/s), operable in x1, x4, x8, x16 slots | |
| Interfaces | PCIe x1, 9-pins USB 2.0 M/B header (for Bluetooth only) | |
| Wireless Frequencies | 2.4GHz: 574Mbps / 5GHz: 2402Mbps, BT 5.2: 2402MHz~2483MHz | |
| Total Bandwidth Capacity | 2976Mbps (AX3000) | |
| Chipset | Intel® AX200 | |
| Antenna Gain | Dual 6dBi External Antennas | |
| Power Requirements | 10W | |
| Dimensions | 77 x 68 x 22 mm (without antenna) | |
| Weight | 0.045 kg | |
| Compatibility | ||
| Operating System Support |
|
|
| IEEE Support | 802.11 a/b/g/n/ac/ax | |
| Additional Features |
|
|
| Additional Information | ||
| Regulatory Compliance | FCC Part 15 Class B, CE, RoHS | |
| Operating Environment | Temperature: 0 ℃ to 55 ℃ Relative Humidity: 10%-90% (non-condensing) |
|
| Storage Environment | Temperature: -10℃ to 70℃ Relative Humidity: 10%-90% (non-condensing) |
|
| MTBF | >50,000h @ 25°C | |
| Packaging | ||
| Contents |
|
|
| Dimensions | 225 x 145 x 35 mm | |
| Weight | 0.18 kg | |
