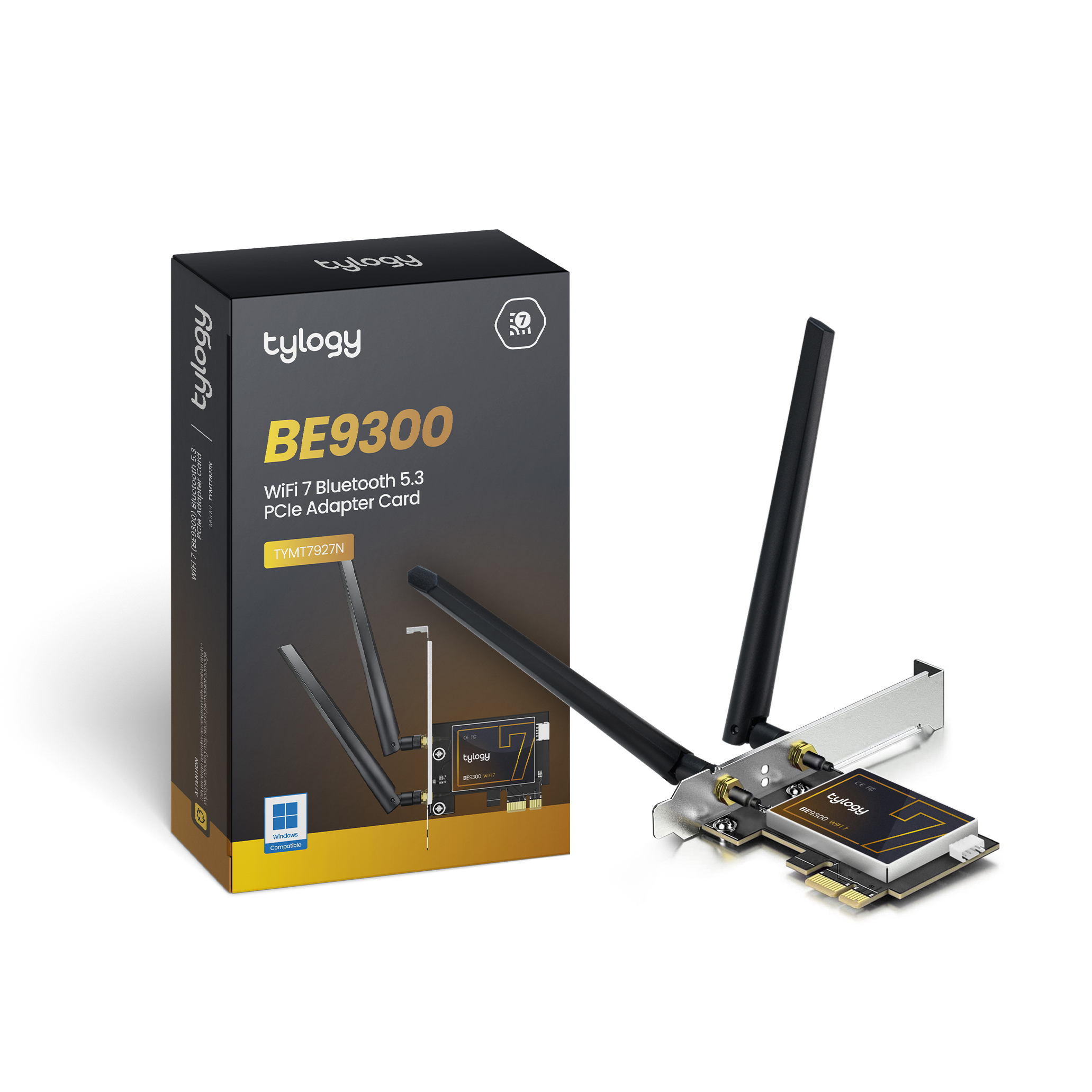

Tylogy® WiFi 7 & Bluetooth 5.3 BE9300Mbps PCIe x1 Tri-Band Wireless Network Adapter Card with High-Gain External Antennas

SKU: TYMT7927N
  • Built-in MediaTek® MT7927 (Filogic™ 380) WiFi 7 module
  • Tri-band support: 2.4GHz, 5GHz and 6GHz native frequencies
  • Up to 9300Mbps of ultra high-speed wireless bandwidth
  • Featuring a set of two 6dBi high gain antennas
  • Supports Bluetooth 5.3 devices
  • Complies with IEEE 802.11 a/b/g/n/ac/ax/be standards
  • Compatible with Windows® 11 (64bits, W11 SV3/23H2 minimum)
  • Includes both full-height and low-profile brackets for installation in standard workstation and PC cases as well as slim cases
Product Warranty

For more details regarding Tylogy products warranty, please check out our Warranty Policy page.

Product Safety

Starting December 13th, 2024, any product sold on the EU market must comply with the GPSR (Regulation EU 2023/988). As part of that directive, economic operators placing products on the EU market must disclose the manufacturer's name and address and nominate a local EU representative entrusted with tasks relating to the safety of the products.

Product Manufacturer:

HCX Technologies Limited
Unit B, 11/F, 23 Thomson Road
Wan Chai District
Hong Kong SAR China

www.hcx.com.hk

EU Representative:

Firx SAS (dba. HCX Europe)
32 boulevard de Strasbourg
CS 30108, 75468 Paris CEDEX 10
France

www.firx.eu

Key Specifications

WiFi Technology

WiFi 7

WiFi Specification

BE9300

Network Bandwidth

5001Mbps to 10Gbps

Technical Details

Technical Specifications
Product TYMT7927N
Product Revision rev 1.0
Bus Type PCI Express rev 3.0
Bus Width x1 Lane PCI Express (8.0GT/s), operable in x1, x4, x8, x16 slots
Interfaces PCIe x1, 9-pins USB 2.0 M/B header (for Bluetooth only)
Wireless Frequencies 2.4GHz: 688Mbps / 5GHz: 2880Mbps / 6GHz: 5760Mbps, BT 5.3: 2402MHz~2483MHz
Total Bandwidth Capacity 9328Mbps (BE9300)
Chipset MediaTek® MT7927 (Filogic™ 380)
Antenna Gain Dual 6dBi External Antennas
Power Requirements 10W
Dimensions 77 x 68 x 22 mm (without antenna)
Weight 0.045 kg
Compatibility
Operating System Support
  • Windows® 11 (64bits only, W11 64bits SV3/23H2+ recommended)
IEEE Support 802.11 a/b/g/n/ac/ax/be
Additional Features
  • MU-MIMO
  • OFDMA
  • 4KQAM
Additional Information
Regulatory Compliance FCC Part 15 Class B, CE, RoHS
Operating Environment Temperature: 0 ℃ to 55 ℃
Relative Humidity: 10%-90% (non-condensing)
Storage Environment Temperature: -10℃ to 70℃
Relative Humidity: 10%-90% (non-condensing)
MTBF >50,000h @ 25°C
Packaging
Contents
  • 1 x TYMT7927N WiFi 7 & Bluetooth 5.3 PCIe x1 Wireless Network Adapter Card (with pre-installed full height bracket)
  • 2 x 1T1R 6dBi high gain RP-SMA antenna
  • 1 x Low Profile Bracket
  • 1 x Quick Installation Guide
Dimensions 225 x 145 x 35 mm
Weight 0.18 kg
