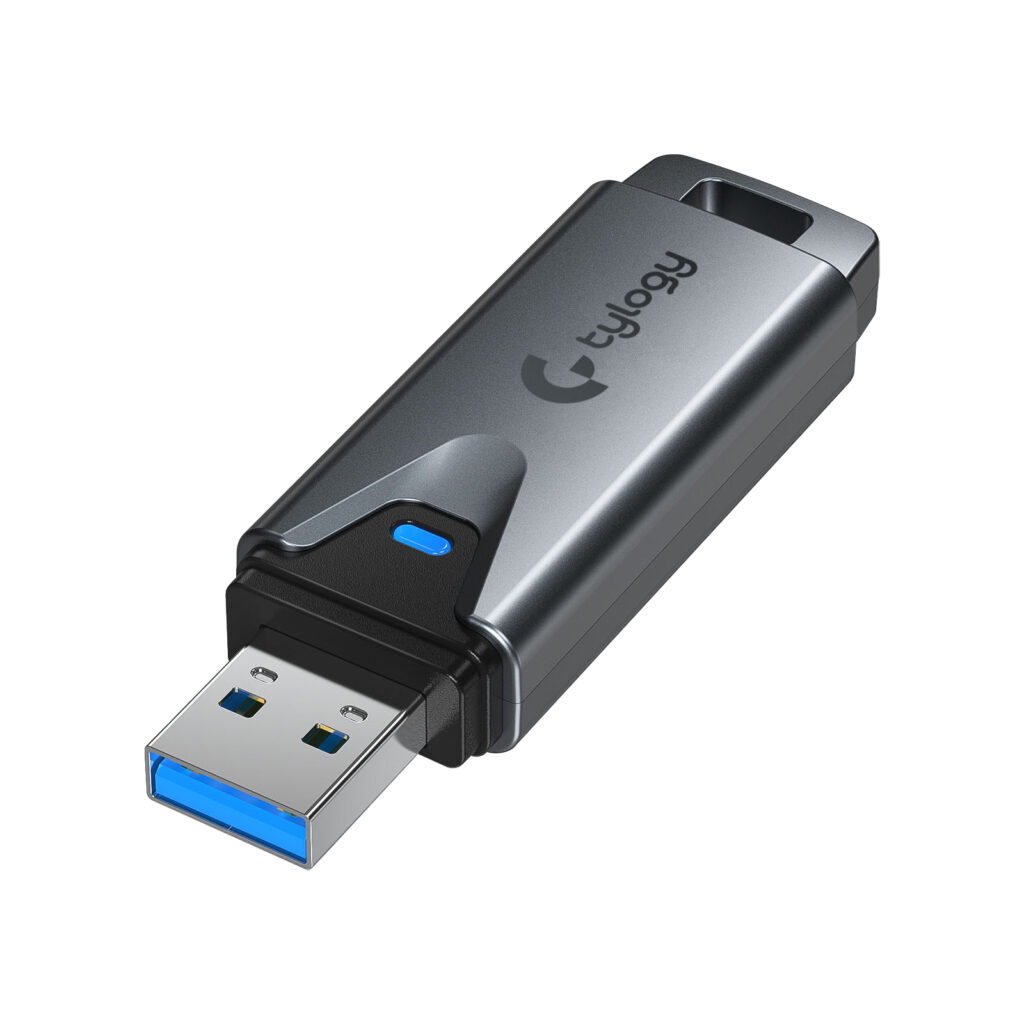

Tylogy® USB 3.1 WiFi AC1300Mbps Dual-Band Wireless Network Adapter Dongle
- Built-in Realtek® RTL8812BU WiFi 5 chipset
- USB 3.1 Gen 1 connector (backwards compatible with USB 2.0)
- Dual-band support: 2.4GHz and 5GHz native frequencies
- Up to 1300Mbps of high-speed wireless bandwidth
- Featuring an external 5dBi high gain dual-band antenna
- Complies with IEEE 802.11 a/b/g/n/ac standards
- Compatible with Windows® 7/8.1/10/11, Linux and MacOS
Product Warranty
For more details regarding Tylogy products warranty, please check out our Warranty Policy page.
Product Safety
Starting December 13th, 2024, any product sold on the EU market must comply with the GPSR (Regulation EU 2023/988). As part of that directive, economic operators placing products on the EU market must disclose the manufacturer's name and address and nominate a local EU representative entrusted with tasks relating to the safety of the products.
Product Manufacturer:
HCX Technologies Limited
Unit B, 11/F, 23 Thomson Road
Wan Chai District
Hong Kong SAR China
EU Representative:
Firx SAS (dba. HCX Europe)
32 boulevard de Strasbourg
CS 30108, 75468 Paris CEDEX 10
France
Key Specifications
| WiFi Technology |
WiFi 5 |
|---|---|
| WiFi Specification |
AC1300 |
| Network Bandwidth |
1001Mbps to 2500Mbps |
Technical Details
| Technical Specifications | ||
|---|---|---|
| Product | TYAC1686 | |
| Product Revision | rev 1.0 | |
| Interfaces | USB 3.1 Gen 1 | |
| Wireless Frequencies | 2.4GHz: 400Mbps / 5GHz: 867Mbps | |
| Total Bandwidth Capacity | 1267Mbps (AC1300) | |
| Chipset | Realtek® RTL8812BU | |
| Antenna Gain | 5dBi dual-band antenna | |
| Power Requirements | 5W | |
| Dimensions | 91 x 30 x 12 mm | |
| Weight | 0.045 kg | |
| Compatibility | ||
| Operating System Support |
|
|
| IEEE Support | 802.11 a/b/g/n/ac | |
| Additional Features |
|
|
| Additional Information | ||
| Regulatory Compliance | FCC Part 15 Class B, CE, RoHS | |
| Operating Environment | Temperature: 0 ℃ to 45 ℃ Relative Humidity: 10%-90% (non-condensing) |
|
| Storage Environment | Temperature: -20℃ to 75℃ Relative Humidity: 5%-95% (non-condensing) |
|
| MTBF | >50,000h @ 25°C | |
| Packaging | ||
| Contents |
|
|
| Dimensions | 190 x 110 x 25 mm | |
| Weight | 0.15 kg | |
